Product introduction

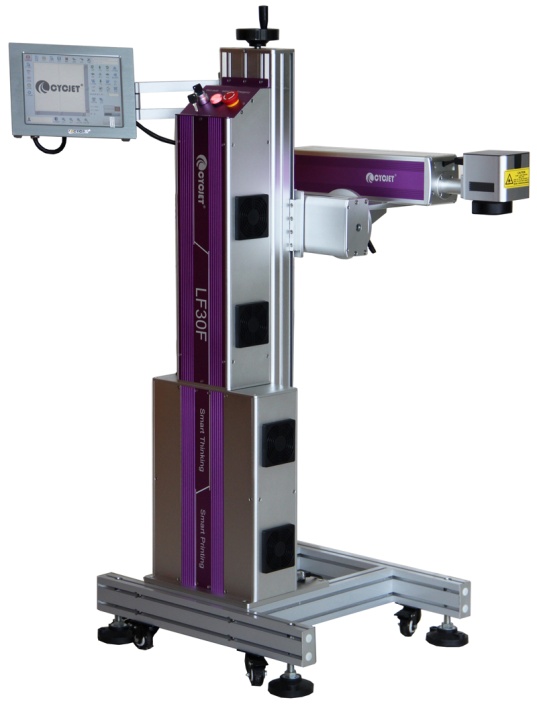

In the field of packaging identification, more than 80% of customer applications do not require too much thoughtful and comprehensive functions. CYCJET lasers are specially designed for these customers to introduce cheap and beautiful models. As a starting point, popular laser marking machines have emerged. In addition, the LF30F can achieve 100,000 hours of trouble-free operation. It is a cheap, cost-effective fiber-optic laser flying marking machine.

Features

Adopting the well-known domestic brand Racus laser, the stability is high.

The head of the laser main beam can be rotated by ±90° to meet multi-directional marking and easy to adjust.

It adopts industrial computer + display touch screen operation, which is easier to master than the operation mode of tablet computer.

The device is equipped with a standard network port, serial port, USB port, synchronizer interface and optoelectronics to facilitate data communication and hardware expansion.

WINDOWS operating system, dedicated marking software, Chinese and English interface, easy to learn.

Performance index

Laser power: 30W

Cooling method: air cooling

Standard marking range: 100mm*100mm

Laser focal length: 187mm ± 2mm

Minimum line width: 0.05mm

Minimum character height: 0.3mm

Operating environment temperature: 0 ° C -40 ° C

Power requirements: AC 220V/50HZ/3A

Power consumption of the whole machine: ≤0.5KW

Applications

Mainly for metal materials, such as iron cover, aluminum cover, and metal or paper with printed coating on the surface, and can also mark some plastic materials.

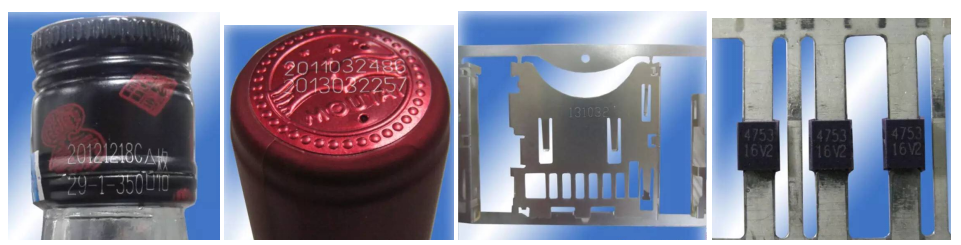

Laser Marking Effect
